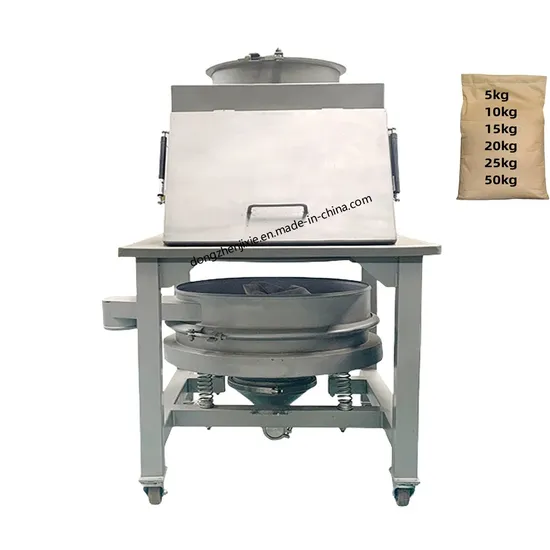

What are the characteristics of the dust-free feeding station? The dust-free feeding station is composed of a charging platform, a discharge bin, a dust removal system, a vibrating screen, etc. It is a manual device for manually pouring small bags of powdered or granular materials into the next hopper.

What are the advantages of the dust-free feeding station? Is it really possible to achieve dust-free feeding? 1. Feeding and dedusting One piece of equipment can dump 50kg, 25kg, and 15kg bags. While feeding to prevent dust, it can also realize manual unpacking and reduce labor costs. 2.

Self-contained dust collection to prevent dust from flying The dust in the unloading process can be collected by the dust-collecting fan. Under the negative pressure of the fan, the dust is sucked into the filter to realize the "separation of gas and material".

When more materials are collected, they fall into the silo due to their own weight, reducing material waste, protecting workers, and preventing plant pollution. 3.

Interceptable foreign matter Grille is set to effectively prevent PE bags from , and a vibrating screen (usually a straight-line screen or a rotary vibrating screen) is equipped to effectively intercept foreign matters and ensure that the discharge is qualified. 4.

Easy to clean The equipment is made of 304/316L stainless steel, which is durable, not easy to hang powder, and easy to clean.

Product Parameters Model Feed Amount (Kg) Vibration Motor (KW) Dust removing Fan (KW) Back Blow Bag (L) Noise (db) Filter Precision (μm) TFW ≤75 0.55 TFW ≤75 0.55 The above is an introduction to the advantages of the dust-free feeding station.

The upper part of the dust-free feeding station is for dust collection, and the lower part is for raw material screening or raw material conveying. It can be equipped with a straight screen, a rotary vibrating screen, a screw conveyor, and a positive pressure or vacuum conveying system.

As the name implies, the dust-free feeding station will not produce dust and other substances during the work, which reflects that the machine has kept a sexual airtight during the transportation process, and there will be no leakage of substances. At present, this kind of machine is very popular in the market.

When used, it can ensure that the surrounding environment of the factory is clean and does not produce dust particles harmful to the human body, and does not pollute the environment. Of course, being dust-free is its advantage. The dust-free feeding station can automatically carry out the feeding work.

We can put the bagged materials into the feeding device of the machine, and the machine can automatically carry out a series of subsequent feeding work. There is no need to manually control its working process, thus reducing a certain amount of labor costs.

The dust-free feeding station is more suitable for bagged materials, and materials in other forms can also be put in, such as frozen materials, such as materials in plastic barrels or other barrels.

The dust-free feeding station uses vibration to transport materials, which may be different from other transport machines. Other transport machines may use wind power to absorb materials or other materials to promote transportation, so the mobility of materials they transport is relatively good.

Some materials with poor fluidity can be transported by a dust-free feeding station, which can screen out unsuitable materials by shaking and not transporting them, so as to ensure the purity of the transported materials.

In addition, there are also two filtering devices and some dust removal devices in the interior of the dust-free feeding station, which can ensure that the machine will not be blocked by internal dust or other impurities during operation, and can also automatically clean the interior of the machine without manpower.

Applicable industries Chemical industry: resin powder, pigment, washing powder, micro powder, paint, soda ash, lemon powder, rubber, plastic, etc. Abrasives, ceramic industry: alumina, quartz sand, mud, sprayed soil particles, etc.

Food industry: sugar, salt, alkali, monosodium glutamate, milk powder, soy milk, yeast, fruit juice, soy sauce, vinegar, etc. Paper industry: coating paint, clay mud, black and white liquid, waste liquid, papermaking liquid, wastewater recycling, etc.

Metallurgical industry: titanium oxide, zinc oxide, electromagnetic materials, metal powder, electrode powder, etc. Pharmaceutical industry: Chinese medicine powder, Chinese medicine liquid, Western medicine powder, Western medicine liquid, Chinese and Western medicine granules, etc.

Environmental protection: garbage, human and animal excrement, and urine, waste oil, food wastewater, wastewater processing, etc. Processing process This is our inner workhouse. some small equipment or parts will be made from here.

There are cranes, laser cutting machines, electric welding machines, platen machines, angle grinders, polishing machines, forklifts, and other equipment. Here is our outdoor operation platform. We often produce and assemble large machines here. There are electric welding machines, polishi
