BGS Series Horizontal Single-Stage Chemical Proce | RFQ Sourcing Details
Industrial Pumps · Quote on request
This is a product procurement detail page: check specs, images, category context and related sourcing paths before sending an RFQ.
Product specs
Buyer's Digest
Use this page as a product-first sourcing checkpoint before sending an RFQ. Category: Industrial Pumps. Confirm application fit, capacity, materials, destination, lead time and compliance requirements before comparing suppliers.
Original product description
The BGS Series is a horizontal chemical process pump intended for handling corrosive liquids and abrasive slurries in industrial process systems. Listed applications include petrochemical, refining, and chemical-industry duties.
Its centrifugal configuration uses a single-stage, single-suction closed impeller and a combined radially split casing. The published operating envelope lists heads from 4 to 300 m, capacities beginning at 3 m³/h, temperatures from -80°C to +450°C, and rotational speeds from 980 to 3600 rpm.
Because the supplied information contains differing maximum-capacity and pressure figures, buyers should obtain a model-specific curve and approved datasheet rather than treating the broad series ranges as guaranteed performance for every configuration.
Design details include externally adjustable impeller clearance for maintaining the wet-end gap and a dual-volute arrangement intended to reduce radial forces and shaft deflection. The listed bearing arrangement is oil lubricated.
Sealing is described as configurable, with labyrinth and lip-seal bearing protection plus mechanical-seal options. Wet-end components can also be configured for the specified fluid, but no particular construction material should be assumed until it appears on the approved quotation and datasheet.
The series is listed to ISO 5199 and ISO 2858. Other standards and certifications are discussed as configuration- or order-dependent, so buyers should confirm exactly which design standard, inspection documentation, and certificates will apply to the selected pump before purchase.
For procurement, provide the fluid composition, solids concentration and particle size, density, viscosity, operating and maximum temperature, required flow, total dynamic head, suction conditions, site elevation, motor power supply, hazardous-area classification, seal plan, and materials requirements.
Confirm the selected duty point on the certified performance curve and request the final bill of materials, motor data, dimensional drawing, nozzle loads, efficiency, NPSH requirement, test scope, documentation package, spare-parts list, preservation method, and shipment configuration.
The listing states a 12-month warranty, but its starting point, exclusions, and service procedure should be documented in the purchase contract.
BGS | Applications and Buyer Notes
BGS is organized as a sourcing-ready Industrial Pumps reference. The page combines visible product or company data with structured procurement cues so buyers can compare application fit, specifications, quantity, quality requirements and lead-time questions be
Applications
- Initial shortlist building for related product or supplier options.
- Specification and application fit review before bulk purchasing.
- Category, keyword and detail-page comparison before sending an RFQ.
Key specifications
- Category
- Industrial PumpsBased on visible page data; confirm exact value in the RFQ.
- Unit
- setBased on visible page data; confirm exact value in the RFQ.
- Casing
- Combined radially split casingBased on visible page data; confirm exact value in the RFQ.
- Stages
- Single-stageBased on visible page data; confirm exact value in the RFQ.
- Impeller
- Closed impellerBased on visible page data; confirm exact value in the RFQ.
- Pump Type
- Horizontal centrifugal process pumpBased on visible page data; confirm exact value in the RFQ.
- Head Range
- 4–300 mBased on visible page data; confirm exact value in the RFQ.
- Lubrication
- Oil-lubricated bearingsBased on visible page data; confirm exact value in the RFQ.
Buyer tips
- State quantity range and split-delivery needs before price comparison.
- Add certification, material or inspection standards when they affect acceptance.
- For time-sensitive projects, include target arrival date and destination.
- For special applications, describe operating condition, installation environment and duty cycle.
FAQ
What should buyers confirm first?
Confirm application, specification, quantity, destination and lead-time requirements before comparing offers.
Can buyers inquire when specs are incomplete?
Yes. Add model, material, size, use case and inspection needs in the RFQ to make replies comparable.
How should this listing be evaluated?
Check title, category, specifications and related keywords against the actual sourcing requirement.
Source mix: ugc
Key specifications
Product sourcing keywords
These terms come from the title, visible copy and specifications, and link into matching aggregate pages.
Continue from this detail page into sourcing structure
These links connect the detail page back to category hubs, procurement aggregates and knowledge pages so new inventory is not isolated.
This URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Industrial Pumps categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 1 Stainless Steel Ball Type Hygienic Check Valve Valvula De Retencion Higienica Tipo Bola De AceroThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 10 6 Asme Eccentric Reducer Stainless Steel Pipe Fitting Welding ReducerThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 10hp 7 5kw Vertical Pipeline Single Stage Electric Industrial Centrifugal Water PumpThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 123m Industrial Grade Stainless Steel Solar Deep Well Submersible Pump For Continuous Mining And PrThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 192f Industrial Grade 6 Inch Diesel Power Centrifugal High Pressure Water PumpThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 1hp Construction Industrial Waste Water Disposal Stainless Steel Centrifugal Submersible Vortex SewaThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 268 6691 Hydraulic Pump Piston Pump For Cat 24m ImplementThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Industrial Valves categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Pipe Fittings And Flanges categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path High Pressure Flow Meters sourcing pathThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Industrial Pump Suppliers sourcing pathThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Flow Control Equipment Suppliers sourcing pathThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
HCZ Horizontal Single-Stage End-Suction Chemical Process Centrifugal PumpRequest Quote
QD Series Horizontal Multistage Centrifugal Pump for High-Head Liquid TransferRequest Quote

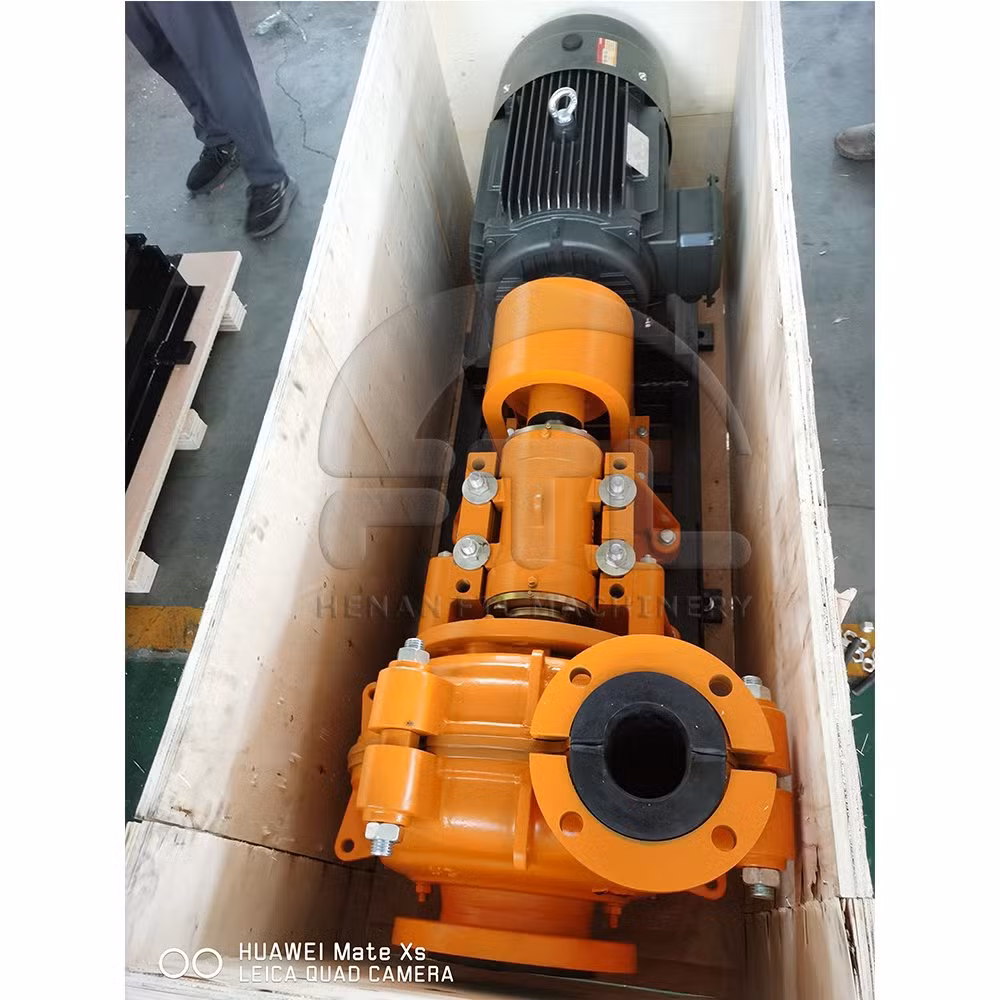

Industrial Horizontal Centrifugal Mine Mining Minerals Processing Mud Sand Slurry Pump - Mud Sand SlRequest Quote
Industrial Horizontal Single Stage Fire Pump with Stainless Steel Impeller and Shaft - Pump and FireRequest Quote
Reliable Irrigation Pump with Single-Stage Single-Suction Design for Industrial Applications - ReliaRequest Quote

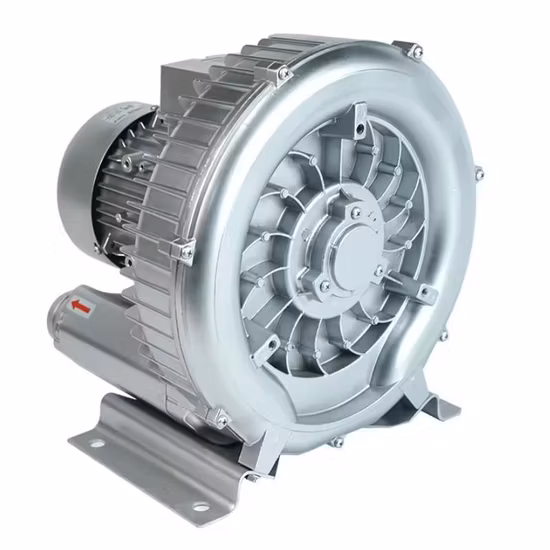

Low Noise Air Ring Vortex Vacuum Pump Single Stage for Industrial Cacuum Cleaners - Air Blower and ARequest QuoteFlowGearSource related sourcing paths
