KCS Air-Cooled Semi-Hermetic Screw Condensing Uni | RFQ Sourcing Details
Commercial Refrigeration · Quote on request
This is a product procurement detail page: check specs, images, category context and related sourcing paths before sending an RFQ.
Quote on requestProduct specs
Buyer's Digest
Use this page as a product-first sourcing checkpoint before sending an RFQ. Category: Commercial Refrigeration. Confirm application fit, capacity, materials, destination, lead time and compliance requirements before comparing suppliers.
Original product description
The KCS series is an air-cooled, semi-hermetic screw refrigeration condensing unit intended for medium-temperature commercial and industrial systems. Listed applications include larger fresh-keeping cold rooms, refrigerated warehouses, ice-making equipment, and chilled-water refrigeration equipment.
The published operating range for the tabulated models is -5°C to 8°C. Seven models are listed: KCS-30M/BHB, KCS-040M/BHB, KCS-050M/BHB, KCS-055M/BHB, KCS-060M/BHB, KCS-070M/BHB, and KCS-080M/BHB. They use semi-hermetic screw compressors and a 380 V, 50 Hz, three-phase power supply.
The model table specifies R507A or R404A refrigerant. Capacity regulation is staged at either 33%-66%-100% or 25%-50%-75%-100%, depending on the selected model. At 0°C evaporation, listed cooling capacities range from 86.4 to 267.8 kW, with listed power inputs from 25.5 to 69.1 kW.
At -10°C evaporation, cooling capacities range from 57.6 to 178.6 kW, with listed power inputs from 23.5 to 63.7 kW. Intermediate ratings are also provided at -5°C and -7°C evaporation.
Buyers should select a model using the capacity and power figures for the actual design condition rather than relying on the maximum published rating. The unit is described as using a Hanbell 5:6 asymmetric-rotor semi-hermetic screw compressor.
Listed protective functions include compressor coil-temperature protection, discharge-temperature protection, low-oil-level protection, oil-pressure-differential protection, and high- and low-pressure protection.
Construction information lists a vertical, finned, recuperative heat exchanger, copper material, aluminum fins, and an RAL 9006 enclosure. White, green, and black are listed as available colors. Customization is available, including product material and other options.
Connection sizes and overall dimensions vary by model. Published overall dimensions range from 1800 × 1300 × 1900 mm to 2300 × 1400 × 1900 mm. The unit is listed as new and packed in a wooden box.
Before procurement, confirm the exact model and compressor configuration, required cooling duty at the project’s evaporation and ambient conditions, refrigerant selection, electrical compatibility, connection sizes, final dimensions, control arrangement, and included accessories.
Also confirm whether the project requires operation outside the tabulated -5°C to 8°C range, because the description separa est conditions, noise data, installation scope, commissioning requirements, and final customization details should be agreed before ordering.
KCS | Applications and Buyer Notes
KCS is organized as a sourcing-ready Commercial Refrigeration reference. The page combines visible product or company data with structured procurement cues so buyers can compare application fit, specifications, quantity, quality requirements and lead-time ques
Applications
- Initial shortlist building for related product or supplier options.
- Specification and application fit review before bulk purchasing.
- Category, keyword and detail-page comparison before sending an RFQ.
Key specifications
- Category
- Commercial RefrigerationBased on visible page data; confirm exact value in the RFQ.
- Unit
- setBased on visible page data; confirm exact value in the RFQ.
- Models
- KCS-30M/BHB, KCS-040M/BHB, KCS-050M/BHB, KCS-055M/BHB, KCS-060M/BHB, KCS-070M/BHBased on visible page data; confirm exact value in the RFQ.
- Refrigerant
- R507A or R404A in the model performance tableBased on visible page data; confirm exact value in the RFQ.
- Power supply
- 380 V, 50 Hz, three-phaseBased on visible page data; confirm exact value in the RFQ.
- Compressor type
- Semi-hermetic screw typeBased on visible page data; confirm exact value in the RFQ.
- Structural form
- VerticalBased on visible page data; confirm exact value in the RFQ.
- Condensation form
- Air-c edBased on visible page data; confirm exact value in the RFQ.
Buyer tips
- State quantity range and split-delivery needs before price comparison.
- Add certification, material or inspection standards when they affect acceptance.
- For time-sensitive projects, include target arrival date and destination.
- For special applications, describe operating condition, installation environment and duty cycle.
FAQ
What should buyers confirm first?
Confirm application, specification, quantity, destination and lead-time requirements before comparing offers.
Can buyers inquire when specs are incomplete?
Yes. Add model, material, size, use case and inspection needs in the RFQ to make replies comparable.
How should this listing be evaluated?
Check title, category, specifications and related keywords against the actual sourcing requirement.
Source mix: ugc
Key specifications
Product sourcing keywords
These terms come from the title, visible copy and specifications, and link into matching aggregate pages.
Continue from this detail page into sourcing structure
These links connect the detail page back to category hubs, procurement aggregates and knowledge pages so new inventory is not isolated.
This URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Hvac Units And Heat Pumps categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Commercial Refrigeration categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Compressors Condensers And Parts categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Ventilation And Air Treatment categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Procurement sourcing pathThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Hvac Equipment Suppliers sourcing pathThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 1 8m 2 5m Commercial Supermarket Island Freezer BetfisThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Cold Room Equipment Exporters sourcing pathThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Commercial Refrigeration Manufacturers sourcing pathThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path CompanyThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 135l 530l Curved Glass Door Chest Freezer BetfisThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 15t 24h Fast Cooling Commercial Industrial Flake Ice Machine For Fish Cement Flake Ice Machine AndThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 2 5m Cold Room For Fruit And Vegetable Meat Cold Room Panels Big Capacity Commercial Supermarket RThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
KCFP Air-Cooled Piston Condensing Unit for Medium-Temperature Cold RoomsRequest Quote
8HP and 10HP Air-Cooled Mini Box Condensing Unit for Commercial RefrigerationRequest Quote
AM-MFK4 Box-Type Air-Cooled Scroll Condensing Unit with Copeland CompressorRequest Quote
KL/E Series Air-Cooled Mini Box-Type Condensing UnitRequest Quote

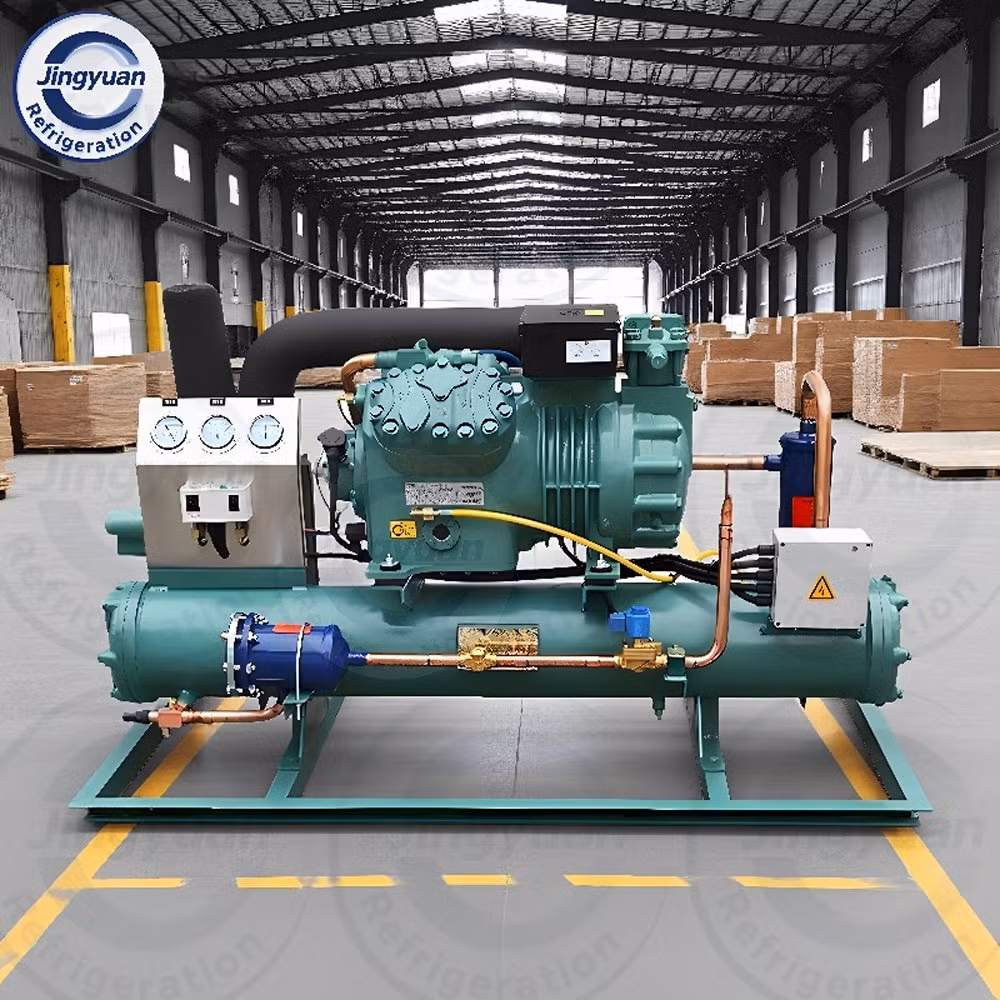

Customized Water-Cooled Semi-Hermetic Piston Refrigeration Condensing UnitRequest Quote
