High Performance Lw300fn 3ton Wheel Loader Earth- | RFQ Sourcing Details
Earthmoving Machinery · Quote on request
This is a product procurement detail page: check specs, images, category context and related sourcing paths before sending an RFQ.
Quote on requestProduct specs
Buyer's Digest
Use this page as a product-first sourcing checkpoint before sending an RFQ. Category: Earthmoving Machinery. Confirm application fit, capacity, materials, destination, lead time and compliance requirements before comparing suppliers.
Original product description
. Overview Certifications Detailed Photos Overview . Model NO.
LW300FN Condition New Rated Load 3-6t Transmission Power Load and Unload Mode Front Discharge Walking Mode Wheeled Type Small Loader Unique Selling Point High Operating Efficiency Core Components Pressure Vessel, PLC, Engine, Motor, Pump Rated Operating Load 3000kg Tread 1850mm Bucket Capacity Range 2m³ Operating Weight 9700 Kg Max.Breakout Force 130 kN Max.Horse Power 95 kN Wheelbase(mm) 2600mm Gradeability 28° Rated Power/Speed 92/2200 Kw/Rpm Height of Hinge at Maximum Lift Height 3830mm Working Height(Fully Lifted) 4870mm Transport Package Comply with Export Packaging Requirements Specification 680X206X285 cm Trademark Top Brand Origin Zhejiang, China HS Code Production Capacity 100 Units Per Month Packaging & Delivery Package Size 680.00cm * 206.00cm * 285.00cm Package Gross Weight 9700.000kg Product descriptions from the supplier .,Ltd ,Building 3, No.1866, Binxing Road, Changhe Street,Bingjiang District, Hangzhou, Zhejiang, China High Performance LW300FN 3ton Wheel Loader Earth-moving Machinery Front Loader Hot Sale LW300FN wheel loader meets national IV emission requirements with reasonable power matching, large torque reserve coefficient and strong power;Standard distribution control high voltage common rail engine, fixed shaft transmission, perfect combination of drive axle with good anti-overload ability, reliable quality, energy saving and high efficiency;Specially designed for traffic construction, municipal sanitation, sand and gravel fields and other working conditions, mature and stable.
Standard distribution control high voltage common rail engine, fuel injection using ECU control, high combustion efficiency, more economical and fuel saving. The fixed shaft gearbox with a large market volume is standard, which is more mature and reliable.
The drive axle has good anti-overload ability to meet the needs of high-strength and high-load operations and is durable. According to the working conditions, three engine power modes of light load, medium load and heavy load can be selected to achieve maximum fuel saving.
The structural components use finite element analysis technology to reduce stress concentration, eliminate local weakness, and be more reliable and stable.
Standard 1.6m³ bucket, optimized bucket shape, easy to cut in, high full bucket rate;A variety of buckets and working devices can adapt to different operating requirements, flexible and efficient.
Certifications Description Unit Parameter value Rated operating load kg 3000 Bucket capacity m³ 1.5~2.5 Machine weight kg 9700 Dump clearance at maximum lift mm 2770~3260 Reach at maximum lift mm 1010~1210 Wheel base mm 2900 Tread mm 1850 Height of hinge at maximum lift height mm 3830 Working height(fully lifted) mm 4870 Max.breakout force kN 130 Max.horse power kN 95 Hydraulic cycle time-raise s 5.4 Total hydraulic cycle time s 9.3 Min.
High | Applications and Buyer Notes
High is organized as a sourcing-ready Earthmoving Machinery reference. The page combines visible product or company data with structured procurement cues so buyers can compare application fit, specifications, quantity, quality requirements and lead-time questi
Applications
- Initial shortlist building for related product or supplier options.
- Specification and application fit review before bulk purchasing.
- Category, keyword and detail-page comparison before sending an RFQ.
Key specifications
- Category
- Earthmoving MachineryBased on visible page data; confirm exact value in the RFQ.
- Unit
- setBased on visible page data; confirm exact value in the RFQ.
- Type
- Small LoaderBased on visible page data; confirm exact value in the RFQ.
- size
- PR Overall machine dimension L×W×H mm 6800×2060×2850Based on visible page data; confirm exact value in the RFQ.
- Model
- WP6G125E201Based on visible page data; confirm exact value in the RFQ.
- Power
- 95 kN Wheelbase(mm) 2600mm Gradeability 28° Rated Power/Speed 92/2200 Kw/Rpm HeiBased on visible page data; confirm exact value in the RFQ.
- Tread
- mm 1850Based on visible page data; confirm exact value in the RFQ.
- Origin
- Zhejiang, ChinaBased on visible page data; confirm exact value in the RFQ.
Buyer tips
- State quantity range and split-delivery needs before price comparison.
- Add certification, material or inspection standards when they affect acceptance.
- For time-sensitive projects, include target arrival date and destination.
- For special applications, describe operating condition, installation environment and duty cycle.
FAQ
What should buyers confirm first?
Confirm application, specification, quantity, destination and lead-time requirements before comparing offers.
Can buyers inquire when specs are incomplete?
Yes. Add model, material, size, use case and inspection needs in the RFQ to make replies comparable.
How should this listing be evaluated?
Check title, category, specifications and related keywords against the actual sourcing requirement.
Source mix: ugc
Key specifications
Product sourcing keywords
These terms come from the title, visible copy and specifications, and link into matching aggregate pages.
Continue from this detail page into sourcing structure
These links connect the detail page back to category hubs, procurement aggregates and knowledge pages so new inventory is not isolated.
This URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Concrete And Mortar Equipment categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Cranes Lifts And Attachments categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Earthmoving Machinery categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Road And Compaction Machinery categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Procurement sourcing pathThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Concrete Mixer Exporters sourcing pathThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 12m3 Mxier Truck With Shacman ChassisThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Construction Machinery Suppliers sourcing pathThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Mini Excavator Manufacturers sourcing pathThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path CompanyThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 17 Tons Heavy Earth Moving Machinery Sd16 160hp Crawler Backhone Dozer Bulldozer With Ripper On SaleThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 2021 Zoomlion 59x 6rz Zlj5442thbbeThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 2021 Zoomlion Zlj5540thbsfThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Lugong LG938 939 Sdlg Earth-Moving Machinery Front End Loader Lugong LG938 Used Wheel Loader - SdlgRequest Quote
Wheeled Hydraulic Earthmoving Loader with Front DischargeRequest Quote

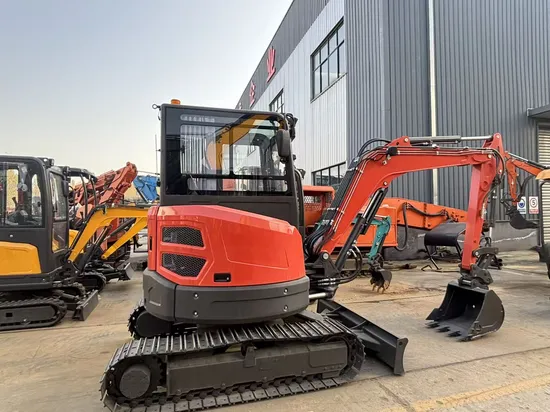

High-Performance 3 8 Ton Small Excavator for Efficient Earth Moving - High-Performance Excavator andRequest Quote
Jg100L Hydraulic Excavator with Wood Grapple - High-Efficiency Earthmoving Solution - Crawler ExcavaRequest Quote

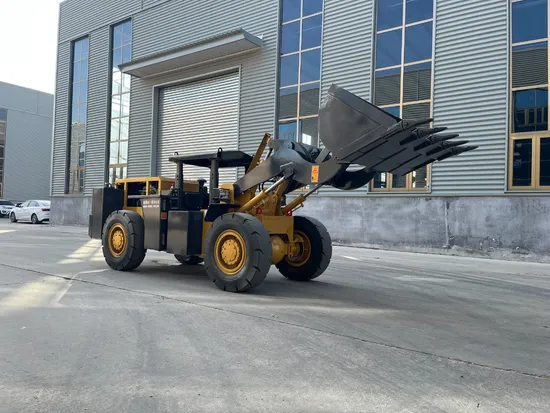

Powerful 1 Ton Underground Loader for Efficient Earth Moving - Loader and ScooptramRequest Quote

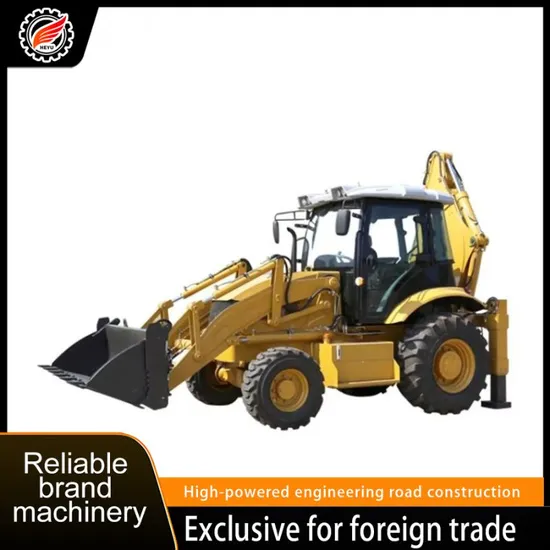

5.2-10.0ton 388 Series Backhoe for Earth Moving Tasks Backhoe Loader - Excavator Loader and BackhoeRequest QuoteEarthMachHub related sourcing paths
