Use this page as a product-first sourcing checkpoint before sending an RFQ. Category: Alarm Panels. Confirm application fit, capacity, materials, destination, lead time and compliance requirements before comparing suppliers.
Original product description
SR-P01-4 4 zones conventional fire alarm control panel SR-P01-8 8 zones conventional fire alarm control panel SR-P01-16 16 zones conventional fire alarm control panel Main features: Four, Eight, Sixteen Zone Style B (Class B) Initiating Device Circuits (IDCs), All zones accept two-wire smoke detectors and any normally-open .
Two Supervisory Input with DC12V output, ideal to connect security alarm devices. Three General Alarm, Trouble and Supervisory, Form A Relay Output. One, Two, Four Built-in Sound Output, Style Y (Class B) Notification Appliance (Signal) Circuits (NACs), NACs may be programmed: Silenceable or Non-Silenceable.
3.0 amps of total system power. Resettable DC24V & Non-resettable DC24V Output. Zone Input Short Circuit can be set to "Alarm" or " Fault" mode. RS485 Communication Port (optional). Automatic/Manual mode can be programmed. Disable/Enable control per Zone (IDC) can be programmed.
Disable/Enable Sound Output(NACs) can be programmed. Technical Parameters AC Power 220VAC, 50 Hz. Battery Sealed lead-acid batteries only. Maximum charging circuit: 27.6VDC @ 0.8 amp for normal flat charge Maximum battery charger capacity 18AH battery NOTE Two 10AH batteries can be housed in the cabinet.
Larger batteries require a separate battery box Total DC24V system power 3.0 amps Maximum current per NAC 1.25 amps Resettable four-wire smoke detector power output. yes Non-resettable power output.

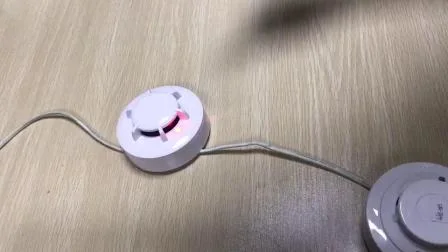

yes Integral Form-A Alarm, Trouble and Supervisory relays, rated at 2.0 amps @ 30 VDC (resistive), 2.0 amps @ 30 VAC (resistive) Product show: This fire alarm control panel can Match any 2/4-wire smoke heat detector,strobe siren,fire bell,manual call point ect smoke detector 2 wire, 4 wire optiona, photoeletrci type heat detector 2 wire, 4 wire optional, rate of rise or fixed temeparture strobe siren wired type, with or without strobe fire bell wired type, indoor or outdoor type manual call point resettable type or breaking glass type optional Not only the alarm control panel we have, but also we offer all kinds of detectors you want, we are looking forward to your inquiry, thank you!
MORE INFO: : Model NO: SR-P01-16 Usage Fire Certification CE Alarm Volume (within 1m) ≥80dB Networking Mode Wire Wiring Mode Sub-Line System Color Red Fire Panel Type Conventional Zone Number 4 Zone, 8 Zone, 16 Zone Optional Net Weight 11kg;Size: 48.00cm * 42.00cm * 18.50cm Package Gross Weight 10.000kg;Transport Carton;Specification: 220VAC, 50 Hz.;Trademark: SUMRING;Origin: China;HS
