3 in 1 CNC Fiber Portable Metal Handheld Laser We | RFQ Sourcing Details
Laser Welding Machines · Quote on request
This is a product procurement detail page: check specs, images, category context and related sourcing paths before sending an RFQ.
Product specs
Buyer's Digest
Use this page as a product-first sourcing checkpoint before sending an RFQ. Category: Laser Welding Machines. Confirm application fit, capacity, materials, destination, lead time and compliance requirements before comparing suppliers.
Original product description
CCI LASER Metal CNC Fiber Laser Welding Machine High welding efficiency, high cost performance and low running cost High welding performance for copper/brass, aluminum, stainless steel and carbon steel Application Fiber laser welding machines are widely used in ifts and other industries.
It can also be used for welding of many different materials, and can also meet the welding of different industries demand Applicable Industries: Manufacturing Industry. Laser welding technology is widely used in auto industry.
Digital 3C industry Laser welding has been widely used in the digital 3C industry, especially in the Medical industry The welding seam of the laser welding machine for medical equipment is smooth and beautiful, and will not cause deformation of the welded product.
CCILASER Laser Welding Machine Advantages Fast welding speed . 2-3 times faster than traditional welding process. Less welding consumables, long life, safer and more environmentally friendly. Weld seams are smooth and beautiful, no secondary treatment, saving time and cost.
Welding work piece has little thermal influence and no deformation. The beam can be adjusted 0.5-6mm by swing the laser head, which makes up for the disadvantage of the laser welding spot, expands the tolerance range of the machined parts and the weld width, and obtains better weld formation.
Technical Parameters Series No. Technical Item Technical Parameters 1 Power Rate 500W/2000W/3000W 2 Wavelength 1064nm 3 Fiber Length 8-10m (Standard) /15m (Max.
Length) 4 Working Type Continuous/ Modulation 5 Welding Speed 0-120mm/s 6 Air Cooling Chiller Inustrial Chiller 7 Working Temperature 15-35 Centi Degree 8 Working Humidity Less than 70% No Condensation 9 Welding Thickness 0.5-5mm 10 Welding Gap Less than 0.5mm 11 Power Supply AC220V Penetration Date Material Air Thickness (mm) 500w 1000w 1500w 2000w Aluminium N2 1.0 √ √ √ 1.2 √ √ √ 1.5 √ √ 2.0 √ 2.5 √ Stainless Steel Ar 0.5 √ √ √ √ 0.8 √ √ √ 1.0 √ √ √ 1.2 √ √ √ 1.5 √ √ √ 2.0 √ √ 2.5 √ 3.0 √ Carbon Steel CO2 0.5 √ √ √ √ 0.8 √ √ √ 1.0 √ √ √ 1.2 √ √ √ 1.5 √ √ √ 2.0 √ √ 2.5 √ 3.0 √ Galvanized Sheet Ar 0.5 √ √ √ √ 0.8 √ √ √ 1.0 √ √ √ 1.2 √ √ √ 1.5 √ √ 2.0 √ 2.5 √ CCILASER Laser Welding Machine Main Components Raycus/ JPT laser source Compared with traditional lasers, CW fiber laser has higher efficiency electric-optical conversion, lower power consumption and excellent beam quality.
The fiber laser is compact and ready to use. It can be used as a stand-alone unit or easily inserted into user's apparatus.
Main Features: Excellent beam quality High quality fiber output High Power Stability Continuously tunable output power, quick switching response Maintenance free operation High wall plug efficiency Convenient control interface High frequency modulation Special Laser Welding Gun and System Nozzle: Customer can change the corresponding nozzle according to different welding processes, and can twist the copper nozzle to adjust the focal length, and the adjustable range of focus position is ±15mm.
Wire feeding device: lightweight bend wire feeding structure, wire feeding Angle position can be adjusted conveniently. Trachea interface: protective gas inlet. Lead signal line: it is communicated with copper nozzles. When welding, , which plays a role of safetyprotection.
Circulating water channel: cold water circulating structure is used to cool the reflector and gun body.
QBH protective cover: connect with the laser end, pay attention to cleaning during installation to avoid dust entering the gun body S&A/ Hanli Water Chiller Air water cooled chiller RMFL-1000 is developed by S&A Teyu based on the laser welding market demand and is applicable to cool 1000W-1500W handheld fiber laser welding machine.
Water cooling chiller RMFL-1000 featur
In | Applications and Buyer Notes
in is organized as a sourcing-ready Laser Welding Machines reference. The page combines visible product or company data with structured procurement cues so buyers can compare application fit, specifications, quantity, quality requirements and lead-time questio
Applications
- Initial shortlist building for related product or supplier options.
- Specification and application fit review before bulk purchasing.
- Category, keyword and detail-page comparison before sending an RFQ.
Key specifications
- Category
- Laser Welding MachinesBased on visible page data; confirm exact value in the RFQ.
- Unit
- setBased on visible page data; confirm exact value in the RFQ.
- Item
- Technical Parameters 1Based on visible page data; confirm exact value in the RFQ.
- Features
- Excellent beam quality High quality fiber output HighBased on visible page data; confirm exact value in the RFQ.
- interface
- HighBased on visible page data; confirm exact value in the RFQ.
- Application
- Fiber laser welding machines are widely used inBased on visible page data; confirm exact value in the RFQ.
Buyer tips
- State quantity range and split-delivery needs before price comparison.
- Add certification, material or inspection standards when they affect acceptance.
- For time-sensitive projects, include target arrival date and destination.
- For special applications, describe operating condition, installation environment and duty cycle.
FAQ
What should buyers confirm first?
Confirm application, specification, quantity, destination and lead-time requirements before comparing offers.
Can buyers inquire when specs are incomplete?
Yes. Add model, material, size, use case and inspection needs in the RFQ to make replies comparable.
How should this listing be evaluated?
Check title, category, specifications and related keywords against the actual sourcing requirement.
Source mix: ugc
Key specifications
Product sourcing keywords
These terms come from the title, visible copy and specifications, and link into matching aggregate pages.
Continue from this detail page into sourcing structure
These links connect the detail page back to category hubs, procurement aggregates and knowledge pages so new inventory is not isolated.
This URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 100kw Spot Welding Machine Automatic Welder Is Suitable For Metal Mesh Frame Shelf WeldThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 135a Flux Core Mig Welder 220v 3 In 1 Mig Arc Lift Tig Welding Machine Igbt Dc Inverter Gasless WeldThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 1500w Air Cooling Handheld Semi Auto Fiber Laser Welding Machine For Sale W Handheld LaseThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 15m Pulse Width Fiber Laser Welding Machine For Electronic IndustryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 160mm Hydraulic Pvdf Pe Pipe Butt Fusion Welding Machine 2026 Plastic Welding Machinery ManufacturThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 2000w Water Cooling Handheld Laser Welder Multi Function Fiber Laser System 2026 Handheld Laser WeThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 200w Spot Laser Welding Machine Jewelry Portable Table Laser Soldering Welding Machine Welding MacThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 3 In 1 Cnc Fiber Portable Metal Handheld Laser Welding Machine With 1500w Price 2000w 3000w HandheldThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 3 Phase Mig Welder 350 Amp Arc Welder Co2 Gas Mig Mag Mma Aluminum Welding MachineThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 350a 500a 600a Igbt Aluminum Mig Welding Machine Aland Welding Machines Manufacturer Mig Tig Mma LThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Arc Welding Machines categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Laser And Resistance Welding categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Plasma And Flame Cutting categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
1000W 1500W 2000W Fiber Laser Welding Machine for Metal Sheet - Laser Welding Machine and Handheld LRequest Quote
Handheld 1000/1500/2000/3000W Fiber Laser Welding Machine for Sale with Low Price - Welding MachineRequest Quote

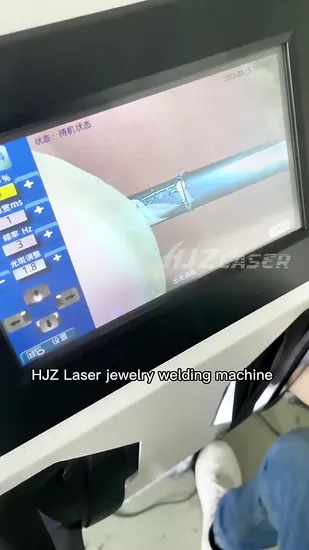

Small Size YAG Jewelry Laser Welder 100W 200W Smart Touch Screen Jewellery Remaking Welding MachineRequest Quote
