The ALPHA RSN-2500 is a three-phase 380 V industrial stud welding machine offered in Compact and Large configurations. Both versions use IGBT inverter technology, operate at 50/60 Hz, and provide a no-load voltage of 100 V.
A digital display shows welding current and welding time, while the control panel is described as suitable for straightforward adjustment. The RSN-2500 Compact has a stated current range of 200–2500 A, rated input capacity of 99 kVA, rated input of 150 A, and a maximum specified weldable stud diameter of 22 mm.
Its listed dimensions are 66 × 39 × 76 cm and its weight is 75 kg. The RSN-2500 Large has a stated current range of 300–2500 A, rated input capacity of 116 kVA, rated input of 185 A, and a maximum specified weldable stud diameter of 25 mm. Its listed dimensions are 68 × 36 × 96 cm and its weight is 105 kg.
Both configurations list a maximum weldable stud length of 400 mm, efficiency of 85%, power factor of 0.9, and Class F insulation. The equipment is air-cooled and uses a vertical, one-body construction. Automatic voltage compensation is specified for managing power-grid voltage fluctuations.
Key components are described as having protection against dust, moisture, and water;buyers should request the exact enclosure or ingress-protection rating if required by their operating environment. Stated application examples include steel structures, building floor slabs, and bridges.
These examples do not establish suitability for every stud, base metal, joint design, or structural procedure.
Before ordering, confirm the required configuration, stud diameter and length, stud and workpiece materials, welding procedure, duty cycle, available three-phase electrical service, required accessories, and applicable project codes.
Buyers should also verify which certification documents apply to the exact machine and destination market, as well as the included cables, gun, consumables, packaging, commissioning support, and warranty terms.
ALPHA | Applications and Buyer Notes
ALPHA is organized as a sourcing-ready Arc Welding Machines reference. The page combines visible product or company data with structured procurement cues so buyers can compare application fit, specifications, quantity, quality requirements and lead-time questi
Applications
- Initial shortlist building for related product or supplier options.
- Specification and application fit review before bulk purchasing.
- Category, keyword and detail-page comparison before sending an RFQ.
Key specifications
- Category
- Arc Welding MachinesBased on visible page data; confirm exact value in the RFQ.
- Unit
- setBased on visible page data; confirm exact value in the RFQ.
- Efficiency
- 85%Based on visible page data; confirm exact value in the RFQ.
- Technology
- IGBT inverterBased on visible page data; confirm exact value in the RFQ.
- Input power
- AC three-phase 380 V, 50/60 HzBased on visible page data; confirm exact value in the RFQ.
- Machine type
- Stud welding machineBased on visible page data; confirm exact value in the RFQ.
- Power factor
- 0.9Based on visible page data; confirm exact value in the RFQ.
- Cooling method
- Air c ing-Compact: 66 × 39 × 76 cm;Large: 68 × 36 × 96 cmnCompact: 66 × 39 × 76Based on visible page data; confirm exact value in the RFQ.
Buyer tips
- State quantity range and split-delivery needs before price comparison.
- Add certification, material or inspection standards when they affect acceptance.
- For time-sensitive projects, include target arrival date and destination.
- For special applications, describe operating condition, installation environment and duty cycle.
FAQ
What should buyers confirm first?
Confirm application, specification, quantity, destination and lead-time requirements before comparing offers.
Can buyers inquire when specs are incomplete?
Yes. Add model, material, size, use case and inspection needs in the RFQ to make replies comparable.
How should this listing be evaluated?
Check title, category, specifications and related keywords against the actual sourcing requirement.
Source mix: ugc
Key specifications
Product sourcing keywords
These terms come from the title, visible copy and specifications, and link into matching aggregate pages.
Continue from this detail page into sourcing structure
These links connect the detail page back to category hubs, procurement aggregates and knowledge pages so new inventory is not isolated.
This URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 100kw Spot Welding Machine Automatic Welder Is Suitable For Metal Mesh Frame Shelf WeldThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 135a Flux Core Mig Welder 220v 3 In 1 Mig Arc Lift Tig Welding Machine Igbt Dc Inverter Gasless WeldThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 1500w Air Cooling Handheld Semi Auto Fiber Laser Welding Machine For Sale W Handheld LaseThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 15m Pulse Width Fiber Laser Welding Machine For Electronic IndustryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 160mm Hydraulic Pvdf Pe Pipe Butt Fusion Welding Machine 2026 Plastic Welding Machinery ManufacturThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 2000w Water Cooling Handheld Laser Welder Multi Function Fiber Laser System 2026 Handheld Laser WeThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 200w Spot Laser Welding Machine Jewelry Portable Table Laser Soldering Welding Machine Welding MacThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 3 In 1 Cnc Fiber Portable Metal Handheld Laser Welding Machine With 1500w Price 2000w 3000w HandheldThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 3 Phase Mig Welder 350 Amp Arc Welder Co2 Gas Mig Mag Mma Aluminum Welding MachineThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 350a 500a 600a Igbt Aluminum Mig Welding Machine Aland Welding Machines Manufacturer Mig Tig Mma LThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Arc Welding Machines categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Laser And Resistance Welding categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Plasma And Flame Cutting categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
MZ-1250 3-Phase 380V Digital Inverter Submerged-Arc Welding Machine with MMA and Carbon Arc GougingRequest Quote

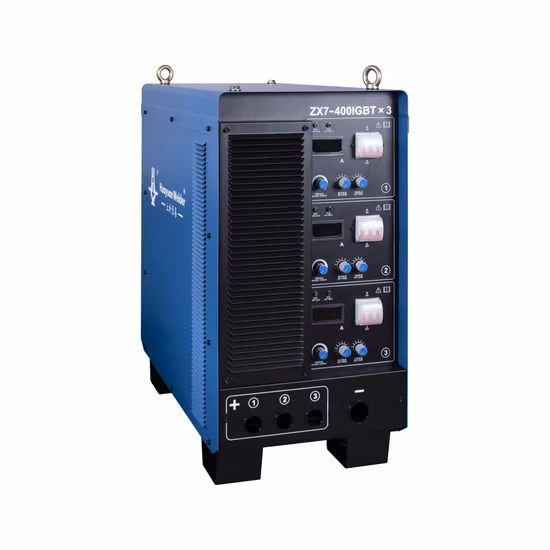

Huayuan Zx7-400igbtx3 MMA Welding Machine/Arc Stick MMA Welding Machine - MMA Inverter Welding MachiRequest Quote
