BST-1000A Horizontal Automatic Injection Molding | RFQ Sourcing Details
Injection Molding Equipment · Quote on request
This is a product procurement detail page: check specs, images, category context and related sourcing paths before sending an RFQ.
Quote on requestProduct specs
Buyer's Digest
Use this page as a product-first sourcing checkpoint before sending an RFQ. Category: Injection Molding Equipment. Confirm application fit, capacity, materials, destination, lead time and compliance requirements before comparing suppliers.
Original product description
The BST-1000A is a horizontal injection molding machine presented for small plastic bottle cap production and other high-precision small thermoplastic parts. It uses screw plasticizing and hydraulic clamping, with computerized control and manual, semi-automatic, and fully automatic operating modes.
The injection unit is offered in two listed configurations. Configuration A uses a 36 mm screw, with a theoretical shot size of 143 cm³, a stated shot weight of 128 g, injection pressure of 183 MPa, injection rate of 90 g/s, and a 21.6 L/D ratio.
Configuration B uses a 38 mm screw, with a theoretical shot size of 180 cm³, a stated shot weight of 162 g, injection pressure of 164 MPa, injection rate of 98 g/s, and a 20.5 L/D ratio. Both configurations list a screw-speed range of 0–190 rpm.
The clamping unit provides 1,000 kN of clamp tonnage, a 320 mm toggle stroke, and a stated mold-thickness range of 150–400 mm. Space between the tie bars is 385 × 350 mm. The ejector system is specified with a 125 mm stroke, 50 kN tonnage, and five ejector positions.
Listed utility and machine data include 7.6 kW heating power, an 11 kW pump motor, 16 MPa maximum pump pressure, a 180 L oil tank, machine dimensions of 4.3 × 1.5 × 1.6 m, and a machine weight of 3.4 t.
The controls are described as having Chinese and English interfaces, storage for up to 50 mold-parameter sets, movement monitoring, alarms, fault diagnosis, and slope settings for controlled starts and stops.
Procurement questions to confirm: Buyers should verify which screw configuration matches the intended cap resin, part weight, mold design, and cavity count.
Confirm the mold interface, nozzle dimensions, actual cycle-time target, cooling requirements, auxiliary equipment, electrical supply, hydraulic-oil specification, and all site utility loads.
Request a mold trial using the intended thermoplastic and production mold, with acceptance criteria covering part weight, dimensional consistency, cycle stability, and reject rate.
Also confirm the final control-system configuration, documentation language, included tooling and accessories, installation scope, training arrangements, spare-parts list, applicable certification documents, packaging, and the warranty coverage for mechanical and electrical components before ordering.
BST-1000A | Applications and Buyer Notes
BST-1000A is organized as a sourcing-ready Injection Molding Equipment reference. The page combines visible product or company data with structured procurement cues so buyers can compare application fit, specifications, quantity, quality requirements and lead-
Applications
- Initial shortlist building for related product or supplier options.
- Specification and application fit review before bulk purchasing.
- Category, keyword and detail-page comparison before sending an RFQ.
Key specifications
- Category
- Injection Molding EquipmentBased on visible page data; confirm exact value in the RFQ.
- Unit
- setBased on visible page data; confirm exact value in the RFQ.
- Model
- BST-1000ABased on visible page data; confirm exact value in the RFQ.
- Control
- Computerized;Chinese/English interface listedBased on visible page data; confirm exact value in the RFQ.
- Automation
- Automatic;manual, semi-automatic, and fully automatic modes listedBased on visible page data; confirm exact value in the RFQ.
- Screw speed
- 0–190 rpmBased on visible page data; confirm exact value in the RFQ.
- Shot weight
- 128 g with 36 mm screw;162 g with 38 mm screwBased on visible page data; confirm exact value in the RFQ.
- Plastic type
- ThermoplasticBased on visible page data; confirm exact value in the RFQ.
Buyer tips
- State quantity range and split-delivery needs before price comparison.
- Add certification, material or inspection standards when they affect acceptance.
- For time-sensitive projects, include target arrival date and destination.
- For special applications, describe operating condition, installation environment and duty cycle.
FAQ
What should buyers confirm first?
Confirm application, specification, quantity, destination and lead-time requirements before comparing offers.
Can buyers inquire when specs are incomplete?
Yes. Add model, material, size, use case and inspection needs in the RFQ to make replies comparable.
How should this listing be evaluated?
Check title, category, specifications and related keywords against the actual sourcing requirement.
Source mix: ugc
Key specifications
Product sourcing keywords
These terms come from the title, visible copy and specifications, and link into matching aggregate pages.
Continue from this detail page into sourcing structure
These links connect the detail page back to category hubs, procurement aggregates and knowledge pages so new inventory is not isolated.
This URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Extrusion Lines categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Auxiliaries And Recycling categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Blow Molding And Thermoforming categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Injection Molding Equipment categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Procurement sourcing pathThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Extrusion Line Exporters sourcing pathThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 1250 Ton Aluminum Alloy Injection Die Casting Machine Die Casting Machine And High Pressure Die CaThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Plastic Machinery Suppliers sourcing pathThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Injection Molding Machine Manufacturers sourcing pathThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 130 Ton Zinc Alloy Injection Die Casting Machine Die Casting And CastingThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 20t 25t 40t 60t Small Injection Molding Machine Plastic Injection Molding Machines Small InjectionThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 20ton Plastic Injection Molding Machine Injection Molding Machine And 20ton Injection Molding MachThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 240 Ton Horizontal Servo Injection Molding Machine For Plastic PreformsThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
HTF-300/JD Automatic Horizontal Injection Molding Machine for Bottle Handle RingsRequest Quote

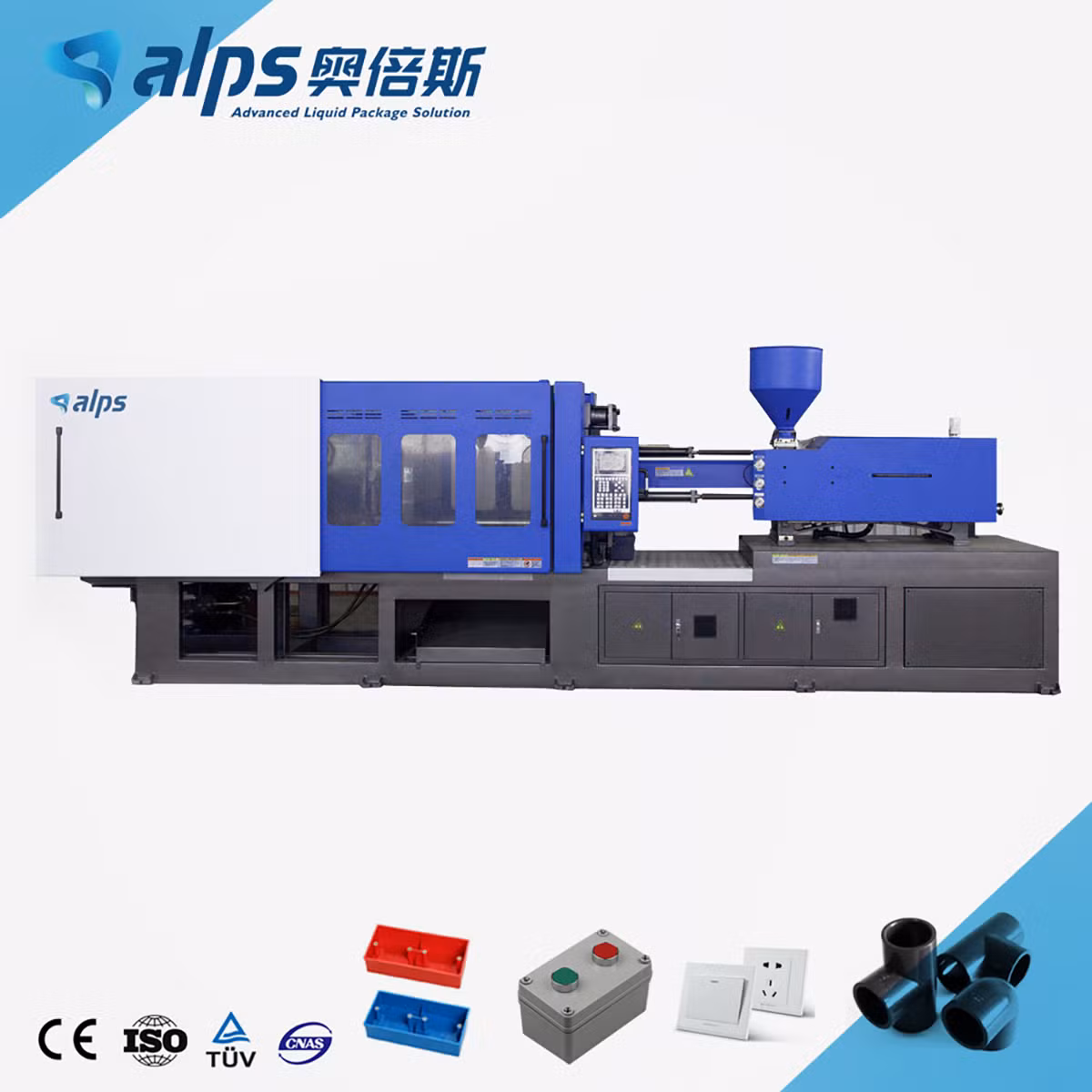

Automatic Horizontal PET Preform and Plastic Cap Injection Molding MachineRequest Quote
