Chevron conveyor belt (C5 C10 C12P1067 C15P450 C1 | RFQ Sourcing Details

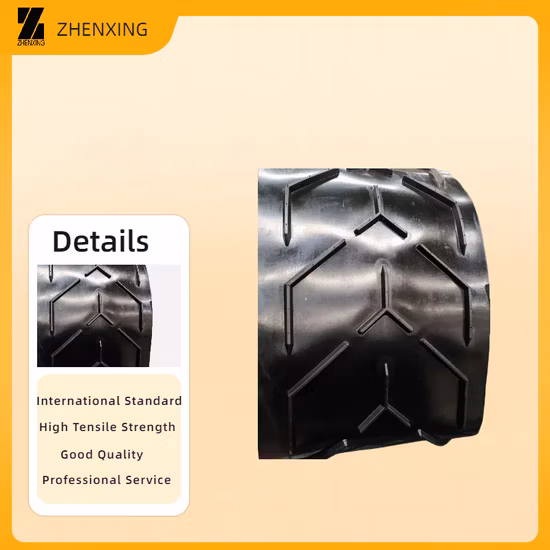

CHEVRON CONVEYOR BELT Structure 1 - Excellent weather resistance and property of cleat, not easy to crack and become deformed. 2 - High abrasive high tensile cleats. 3 - Good flexibility and tear resistance. 4 - Integrated vulcanized cleats and base belt prevent the cleats from coming off.

5 - Different rubber property and carcass strength can be designed according to requirement. P Property Excellent physical property of rubber, high adhesion and fatigue resistance Integrated vulcanized cover and cleat rubber prevent the chevron belt cleat from coming off.

Better cleat rubber property and abrasion extend the useful life Its adjustable design for various chevron conveyor belt by incline angle from range of 16º - 45º. Excellent drainage character.

Chevron models C5 C10 C127 P1067 C15 P450 C17 P440 C25 P440 Y32 P800 Y32 P750 Application Chevron conveyor belt is designed for inclined transportation for conveying bulk material such as coal, sand, mineral, crop, package and bag depending on different loading material and inclined angle to choose suitable cleat height and chevron type to prevent loading material from dropping down.

Ports and transshipment operations Wood industry Smelteries Coal-fired power plants Agriculture Recycling industry Sand and gravel industry Others Technical data sheet CHEVRON TYPE PATTERN BELT WIDTH CLEAT WIDTH CLEAT PITCH CLEAT H C5 C mm Full width or appointed width 100 mm 5 mm C10 C mm Full width or appointed width 150 mm 10 mm C127 C127P mm 850 mm 295 mm 12,7 mm C127P mm 1067 mm 381 mm 12,7 mm C15 C mm Full width or appointed width 200 mm 15 mm C15V mm 330 mm 250 mm 15 mm C15V mm 450 mm 250 mm 15 mm C15V mm 380 mm 250 mm 15 mm C15V mm 600 mm 250 mm 15 mm C15V mm 740 mm 250 mm 15 mm C17 C17P mm 300 mm 330 mm 17 mm C17P mm 440 mm 330 mm 17 mm C17P mm 550 mm 330 mm 17 mm C17P mm 630 mm 330 mm 17 mm C17P mm 750 mm 330 mm 17 mm C17P mm 950 mm 330 mm 17 mm C17P mm 1050 mm 330 mm 17 mm C25 C25P mm 450 mm 250 mm 25 mm C25P mm 550 mm 250 mm 25 mm C25P mm 750 mm 330 mm 25 mm C25P mm 1000 mm 450 mm 25 mm Y32 Y32P mm 600 mm 300 mm 32 mm Y32P mm 800 mm 333 mm 32 mm C32 C32P mm 460 mm 330 mm 32 mm C32P mm 580 mm 330 mm 32 mm C32P mm 630 mm 330 mm 32 mm C32P mm 750 mm 330 mm 32 mm C32P mm 950 mm 330 mm 32 mm Packaging Chevron conveyor belt is designed for inclined transportation for conveying bulk material sch as coal, sand, mineral, crop, package and bag depending on different loading material and inclined angle to choose suitable cleat height and chevron type to prevent loading material from dropping do Q1: What types of Conveyor Belt you can Produce?

A: Hello,Dear We can produce Sidewall,Flat,Chevron,Steel Cord Conveyor Belt,Heat Resistant, Oil Resistant, Rough Top Conveyor belt, White Color for Food Grade Rubber Conveyor Belt, Acid-Alkali Resistant Cold Resistant and PIPE Conveyor Belt etc. Q2:Does your Company have ISO Certificate?

A: Yes of course we have ISO9001:2008 Certificate. Q3:Can you Provide FORM E Certificate of Origin for us? A: Yes we can do Normal CO,FROM E,FROM F,FORM A etc. Q4:What is your Delivery Time? A:Normally Within 10-20days after getting your Prepayment or L/C. Q5:Can you give Guarantee if I buy your belt?

A:Of course,we must give Guarantee for all of our Products,Please We will be appreciated if you can provide the following specification: 1. Conveyor belt type 2. Top cover thickness 3. Bottom cover thickness 4. No.of plies 5. Width of the conveyor belt 6.

Grade: If you are not sure for any of above,we can recommend for you. Once we get above information we will quote exact price at soonest time.
