LING-450M Computer-Controlled Drop Hammer Impact | RFQ Sourcing Details
Impact Testing Machines · Quote on request
This is a product procurement detail page: check specs, images, category context and related sourcing paths before sending an RFQ.
Product specs
Buyer's Digest
Use this page as a product-first sourcing checkpoint before sending an RFQ. Category: Impact Testing Machines. Confirm application fit, capacity, materials, destination, lead time and compliance requirements before comparing suppliers.
Original product description
The LING-450M is a dynamic-load drop hammer impact testing machine designed to determine the impact toughness of plastic pipes. Listed specimen types include PVC-U, PVC-C, PP, PE, underground communication pipe, and other plastic pipe.
It is intended for testing organizations, production facilities, building-material operations, and scientific research settings. The control system uses PLC control with a touch-screen operating display. Operators can digitally preset and display impact height and lifting or dropping weight.
Pneumatic transmission is used to prevent a second impact, with a stated second-impact capture rate of 100%. Listed safety provisions include sample-room door protection and protection against electric shock.
Supported configuration details include a 50–2,000 mm drop-height range with an indicated error no greater than ±2 mm. Available specimen-diameter ranges are Φ10–Φ450 mm or Φ10–Φ630 mm. The listed hammer heads are D25 mm and D90 mm, with other selections available.
The impact center deviation from the fixture center is specified as no more than 2 mm, and the pallet type is 120°. The listed operating temperature is 10–35°C. The machine uses an AC 380 V power source, mechanical loading, dynamic load application, computer display, and computer control.
Listed machine weight is 300 kg. The supplied information also gives dimensions of 730 × 700 × 3650 mm and a packaged gross weight of 350 kg.
Before procurement, buyers should confirm which specimen-diameter configuration is being quoted, the required hammer mass and head, the exact electrical supply requirements, and whether the stated dimensions describe the installed machine or shipping package.
Buyers should also request the applicable test method, acceptance criteria, calibration documentation, fixture details, guarding arrangement, foundation and clearance requirements, included accessories, and a final utilities list for their installation.
LING-450M | Applications and Buyer Notes
LING-450M is organized as a sourcing-ready Impact Testing Machines reference. The page combines visible product or company data with structured procurement cues so buyers can compare application fit, specifications, quantity, quality requirements and lead-time
Applications
- Initial shortlist building for related product or supplier options.
- Specification and application fit review before bulk purchasing.
- Category, keyword and detail-page comparison before sending an RFQ.
Key specifications
- Category
- Impact Testing MachinesBased on visible page data; confirm exact value in the RFQ.
- Unit
- setBased on visible page data; confirm exact value in the RFQ.
- Model
- LING-450MBased on visible page data; confirm exact value in the RFQ.
- Display
- Computer displayBased on visible page data; confirm exact value in the RFQ.
- Drop height
- 50–2,000 mmBased on visible page data; confirm exact value in the RFQ.
- Load method
- Mechanical loadBased on visible page data; confirm exact value in the RFQ.
- Pallet type
- 120°Based on visible page data; confirm exact value in the RFQ.
- Hammer heads
- D25 mm and D90 mm;other selections listed as availableBased on visible page data; confirm exact value in the RFQ.
Buyer tips
- State quantity range and split-delivery needs before price comparison.
- Add certification, material or inspection standards when they affect acceptance.
- For time-sensitive projects, include target arrival date and destination.
- For special applications, describe operating condition, installation environment and duty cycle.
FAQ
What should buyers confirm first?
Confirm application, specification, quantity, destination and lead-time requirements before comparing offers.
Can buyers inquire when specs are incomplete?
Yes. Add model, material, size, use case and inspection needs in the RFQ to make replies comparable.
How should this listing be evaluated?
Check title, category, specifications and related keywords against the actual sourcing requirement.
Source mix: ugc
Key specifications
Product sourcing keywords
These terms come from the title, visible copy and specifications, and link into matching aggregate pages.
Continue from this detail page into sourcing structure
These links connect the detail page back to category hubs, procurement aggregates and knowledge pages so new inventory is not isolated.
This URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 0 001g High Accuracy Laboratory Grade Analytical Balance For Gold Jewelry Measurement Analytical BThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Procurement sourcing pathThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Cleanroom And Lab Furniture categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Laboratory Instruments categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Sample Preparation And Consumables categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Testing And Measurement Equipment categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path CompanyThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Advanced Cup Temperature Shock Test Chamber For Gas ImpactThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 10 98 Low Humidity Type Temperature Humidity Environmental Climate Test Chamber For Lab LaboratoThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 16500rpm High Speed Capillary Hematocrit Centrifuge For Hospital Medical Use Hematocrit CentrifugeThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 3e Blood Harvest Prp Centrifuge Kit For Lab 3e Blood Harvest Prp Centrifuge Kit And Prp CentrifugeThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 6 In 1 Drinking Water Quality Tester Tds Cod Toc Ec Multifunction High Quality Precision Digital WatThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 90 Safety Storage Cabinet Safety Cabinet Flammable Safety Cabinet Flammable Cabinet And 110 GallonThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.

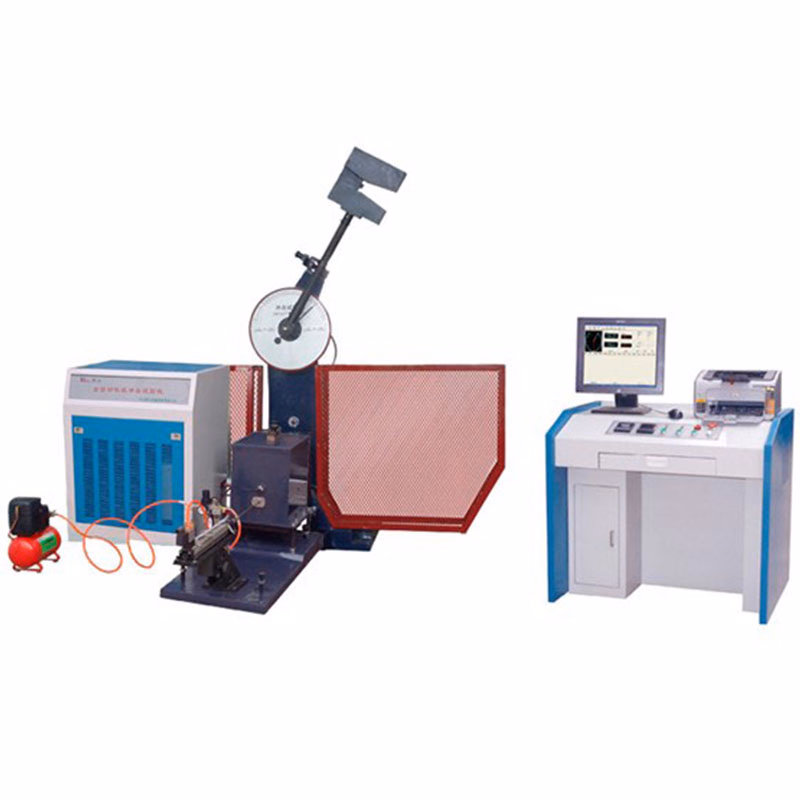

LXJ-5.5M Digital Combined Pendulum Impact Testing Machine for Non-Metallic MaterialsRequest Quote
Mechanical Single Arm Drop Test Machine for Packages - Single Wing Drop Tester and Package Testing MRequest Quote

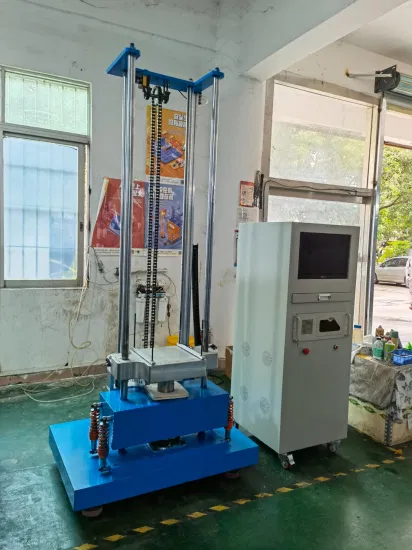

Impact Test Bench Impact Test Machine - Impact Test Bench and Impact Testing EquipmentRequest Quote
