Original product description

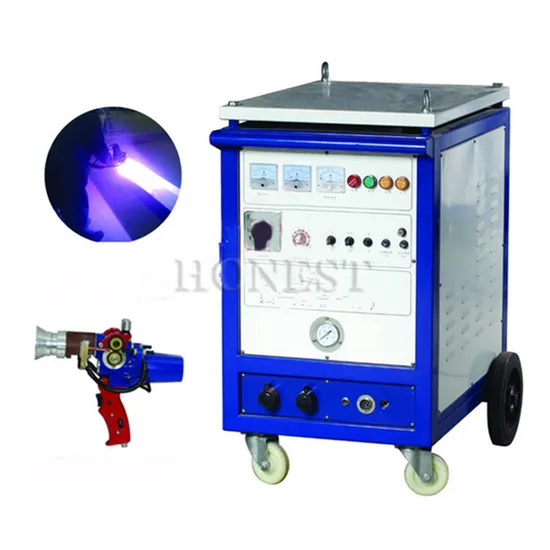

Arc spray machine to melt the metal material by arc that between two pieces of conductive wire, and then send the molten metal atomiza tion to the product surface with high speed.
The arc spray machine is consist of power supply, control device, arc spray gun, wire feeding machine and compressed air suppl y system, etc. It has reliable performance, low failure rate, material select widely, easy to know the spraying process, and coating stable, etc.
It is the most widely application of thermal spraying technolog y currently, widely used in: power plant boiler corrosion wear r esistant coating;steel structure spraying zinc aluminum coating to anti-corrosion;ship hydraulic equipment ant i-corrosion spray coating,petrochemical tank anti-corrosion spray coating;and repair all kinds of hardware, axial,rolls, iron products spraying zinc and a luminum coating to o.
Arc spray machine consist of It consist of power supply, contr oal device, arc spray gun, wire feeding machine. Auxiliary equipments : Sandblast machine and air compressor machine Applications: Anti-corrosive coating for steel structure of steel towe r, bridge, water shutter, vessel and so on.
Surface repair work of work pieces such as paper-making dryer, prin ting roller, bent axis.Electrode spray in capacitance and elec tric porcelain fields.
It can spray on metal, w ood, paper, plastic,floor, ceramic, etc Spray materials It can spray all kind of metal wire s, such as Chrome, Zinc, Aluminum, Copper, Stainless steel, Iron, Steel, Molybdenum, etc alloy wires. Wire size: It can spray the wire size from diameter 1. 6 ~ 3.0mm.
Product Parameters Model HT-SX300A HT-SX400A HT-SX500A HT-SX600A HT-SX600B HT-SX1000A Voltage 380 V Power 15.8KVA 18.8KVA 22KVA 32.6KVA 32.6KVA 53KVA Input current AC 22A Input no-load Voltage DC 20-45V DC 40-80V Voltage Regulation Level A t otal of 9 gears C urrent characteristic Flat characteristic s In put current DC300A DC400A DC 5 00A DC 6 00A DC 6 00A DC 10 00A Load factor 8 0% (3 00A ) 8 0% ( 400A ) 8 0% ( 400A ) 8 0% (6 00A ) 8 0% (6 00A ) 8 0% (10 00A ) Insulation class B Air p ressure ≥ 0.6 MPa Dimension 700*500*1010mm 1400*800*1170mm Gross Weight 176kg 220 kg 22 0 kg 270 kg 280 kg 530 kg *In case of the machine upgrade, the appearance and size may be a little different, please take the actual machine as the standard.
Detailed Photos
Electric | Applications and Buyer Notes
Electric is organized as a sourcing-ready Arc Welding Machines reference. The page combines visible product or company data with structured procurement cues so buyers can compare application fit, specifications, quantity, quality requirements and lead-time que
Applications
- Initial shortlist building for related product or supplier options.
- Specification and application fit review before bulk purchasing.
- Category, keyword and detail-page comparison before sending an RFQ.
Key specifications
- Category
- Arc Welding MachinesBased on visible page data; confirm exact value in the RFQ.
- Unit
- setBased on visible page data; confirm exact value in the RFQ.
- size
- may be a little different, please take the actual machine as the standard. DetaiBased on visible page data; confirm exact value in the RFQ.
- Weight
- 176kg 220 kg 22 0 kg 270 kg 280 kg 530 kg *In case of the machine upgrade, the aBased on visible page data; confirm exact value in the RFQ.
- Voltage
- DC 20-45V DC 40-80VBased on visible page data; confirm exact value in the RFQ.
- diameter
- 1. 6 ~ 3.0mmBased on visible page data; confirm exact value in the RFQ.
- application
- of thermal spraying technolog y currently, widely used inBased on visible page data; confirm exact value in the RFQ.
- Product Parameters
- Model HT-SX300A HT-SX400A HT-SX500A HT-SX600A HT-SX600B HT-SX1000ABased on visible page data; confirm exact value in the RFQ.
Buyer tips
- State quantity range and split-delivery needs before price comparison.
- Add certification, material or inspection standards when they affect acceptance.
- For time-sensitive projects, include target arrival date and destination.
- For special applications, describe operating condition, installation environment and duty cycle.
FAQ
What should buyers confirm first?
Confirm application, specification, quantity, destination and lead-time requirements before comparing offers.
Can buyers inquire when specs are incomplete?
Yes. Add model, material, size, use case and inspection needs in the RFQ to make replies comparable.
How should this listing be evaluated?
Check title, category, specifications and related keywords against the actual sourcing requirement.
Source mix: ugc
Key specifications
Product sourcing keywords
These terms come from the title, visible copy and specifications, and link into matching aggregate pages.
Continue from this detail page into sourcing structure
These links connect the detail page back to category hubs, procurement aggregates and knowledge pages so new inventory is not isolated.
This URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 100kw Spot Welding Machine Automatic Welder Is Suitable For Metal Mesh Frame Shelf WeldThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 135a Flux Core Mig Welder 220v 3 In 1 Mig Arc Lift Tig Welding Machine Igbt Dc Inverter Gasless WeldThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 1500w Air Cooling Handheld Semi Auto Fiber Laser Welding Machine For Sale W Handheld LaseThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 15m Pulse Width Fiber Laser Welding Machine For Electronic IndustryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 160mm Hydraulic Pvdf Pe Pipe Butt Fusion Welding Machine 2026 Plastic Welding Machinery ManufacturThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 2000w Water Cooling Handheld Laser Welder Multi Function Fiber Laser System 2026 Handheld Laser WeThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 200w Spot Laser Welding Machine Jewelry Portable Table Laser Soldering Welding Machine Welding MacThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 3 In 1 Cnc Fiber Portable Metal Handheld Laser Welding Machine With 1500w Price 2000w 3000w HandheldThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 3 Phase Mig Welder 350 Amp Arc Welder Co2 Gas Mig Mag Mma Aluminum Welding MachineThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 350a 500a 600a Igbt Aluminum Mig Welding Machine Aland Welding Machines Manufacturer Mig Tig Mma LThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Arc Welding Machines categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Laser And Resistance Welding categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Plasma And Flame Cutting categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.

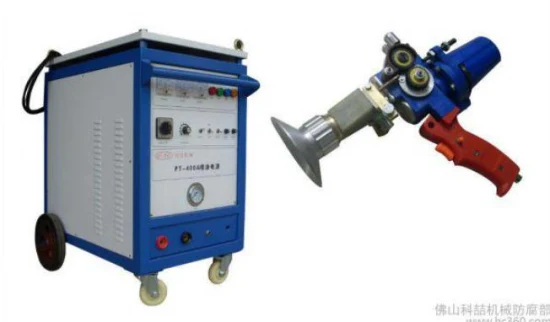

Metal Wires Spray Machine Electric Arc Welding Equipment Arc Welding Machines - Arc Welders and ArcRequest QuoteEasy Operation Thermal Spray Equipment / Wire Coating Machine / AC Arc Welding Machine - Wire CoatinRequest Quote
